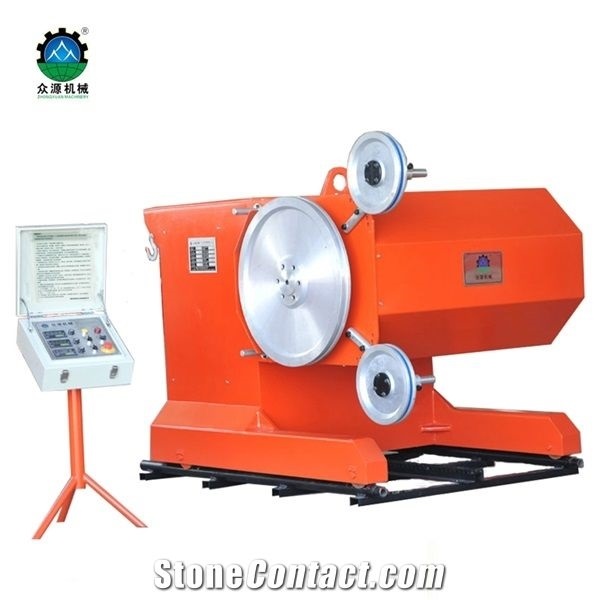

Diamond Wire Saw Machine with Pmsm for Quarry-Quarry Wire Saw Machine

Stone Quarry MachinesQuarry Wire Saw Machine

Zhongyuan China China

Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine

Machinery Function Features
Functions and Features:
Being controlled by two sets of inverters and applying constant tension control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.
The machine is without phase request. It doesnot need to change or distinguish the power phase. The machien has the following protection functions: wire broken protection, over-loading protection, open-phase protection, terminal limit, and so on.
The lateral moving and the rotation angle of the cutting haed are controlled and driven by electric motor. There is photoelectric procimity switch installed on the cutting head for position limitation protection. This function enables the machine to work normally under harsh circumstance with moisture and dust.
The real time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor,etc. It makes the operation and adjustment of the machine more convenient.
The machine can be operated manually and automatically. The manual and automatic functions can be shafted from each other. Under the automatic funstion, the machine can be unattended operated, and one worker is able to operate multiple machines.
Using Permanent Magnet Synchronous Motor, the wire saw machine is more energy-saving, larger torque, and higher efficient.
Technical Data
Parameters Unit ZY-55YG-12P ZY-75YG-12P ZY-55YM-12P ZY-75YM-12P
Length of rails m 7 (2m×3+1m) 7 (2m×3+1m) 7 (2m×3+1m) 7 (2m×3+1m)
Main Motor Power kw 55 75 55 75
Motor Flywheel Unit Rotation ° 360° 360° 360° 360°
Feed Motors Power kw 1.5 1.5 1.5 1.5
Dimension LxWxH mm 2500×1600×1530 2500×1600×1530 2320×1460×1450 2500×1600×1530
Wire Saw Speed m/s 0-33 0-33 0-40 0-40
Adjustment Distance mm 500 500 390 500
Cutting Distance mm 1900 1900 1700 1900
Main Flywheel Diameter mm 800 800 800 800
Allowed working temperature -15~+40℃ -15~+40℃ -15~+40℃ -15~+40℃
Feeding Speed/Fixed Speed m/h 0-90 0-90 0-90 0-90
Cutting material Granite Granite Marble Marble
Total Weight Kg 3000 3500 3000 3500
Max. Wire Length m 20-120 20-150 20-120 20-150
