Name: 2025 High Benefit Ultra Thin Multiwire Saw Stone Block Cutting Machine
Brand: Fujian Province Hualong Machinery Co.,Ltd
SKU: 8006
Price: 253500 USD
Availability: InStock

2025 High Benefit Ultra Thin Multiwire Saw Stone Block Cutting Machine

Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine

$253500-260000

Hualong

China

Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine

Trade Terms:

Port : Fuzhou Port- China

Shipment Terms:FOB CFR CIF EXW FAS CIP FCA CPT Express Delivery

Payment :

Machinery Function Features

Ultra-Thin Multi-Wire Saw - Redefining Efficiency

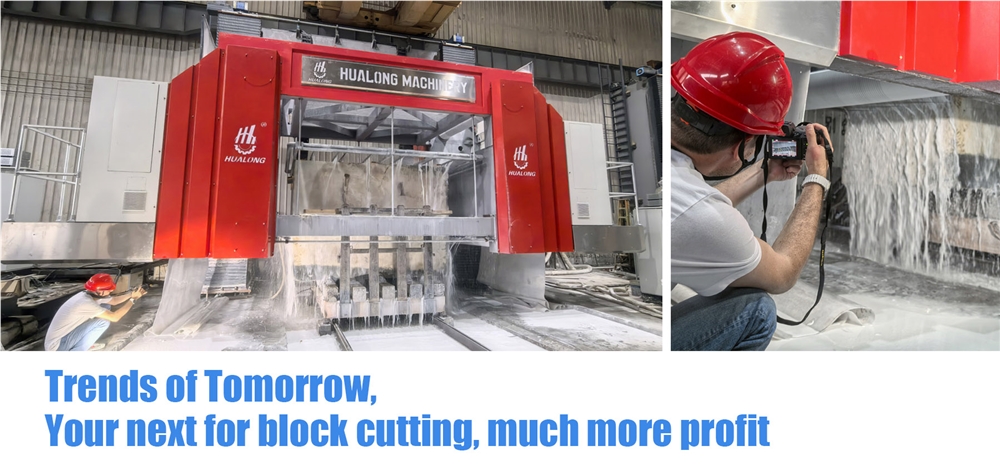

Trends of Tomorrow, Your next machine for block cutting for much more benefit.

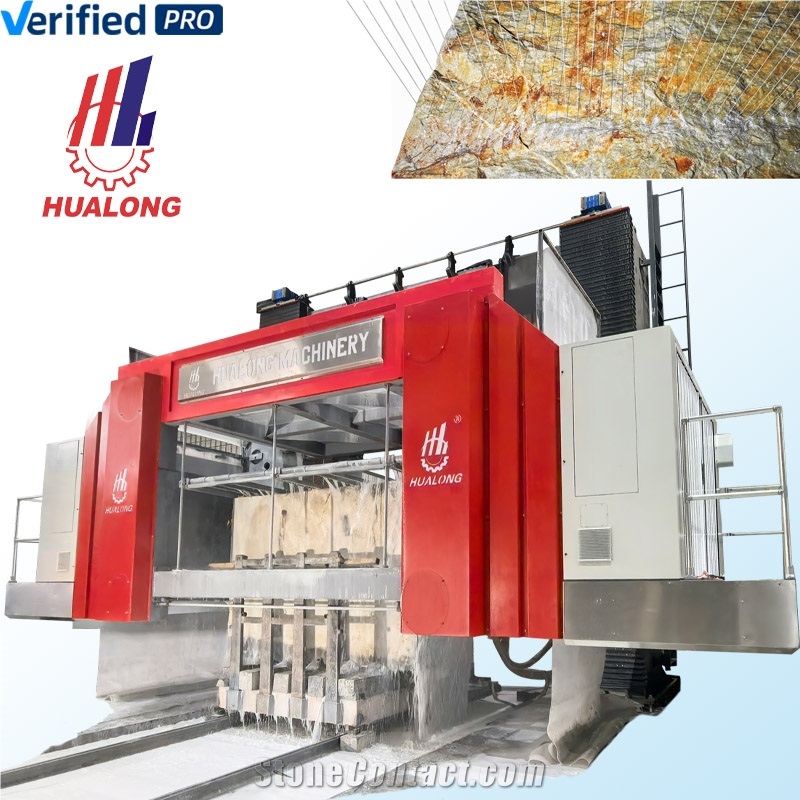

Hualong new multi-wire cutting machine HLMW-100/150 represents a significant leap in the way stone is processed. Using cutting-edge technology and ultra thin diamond wire with 0.35-0.8mm diameter, it's well done to cut marble, granite and ornamental rocks in different thickness efficiently. Thanks to an easy user control system and its patent structure birations free, it allows a longer life of the wire and an unparalleled reliability.

Key Advantage:

1) High yield: 97%+ material utilization with 0.4-0.7mm kerf, 15-20% higher than conventional saws

2) Eco-Friendly: 90% less dust, 40dB noise reduction, 50% energy saving.

3) Ultra-Thin Cutting: Produce slabs below 10mm with 50% better flatness and zero wire marks.

4) Space-Saving: 30% smaller footprint for space-constrained workshops.

The use of such advanced cutting technology means quality, efficiency and profit. This trend also reflects a broader movement towards sustainable practices in the industry. By reducing waste, manufacturers are not only cutting costs but also minimizing their environmental footprint. The efficient use of resources is increasingly important in modern manufacturing, and the stone industry's adoption of this leading technologies is a prime example of this shift.

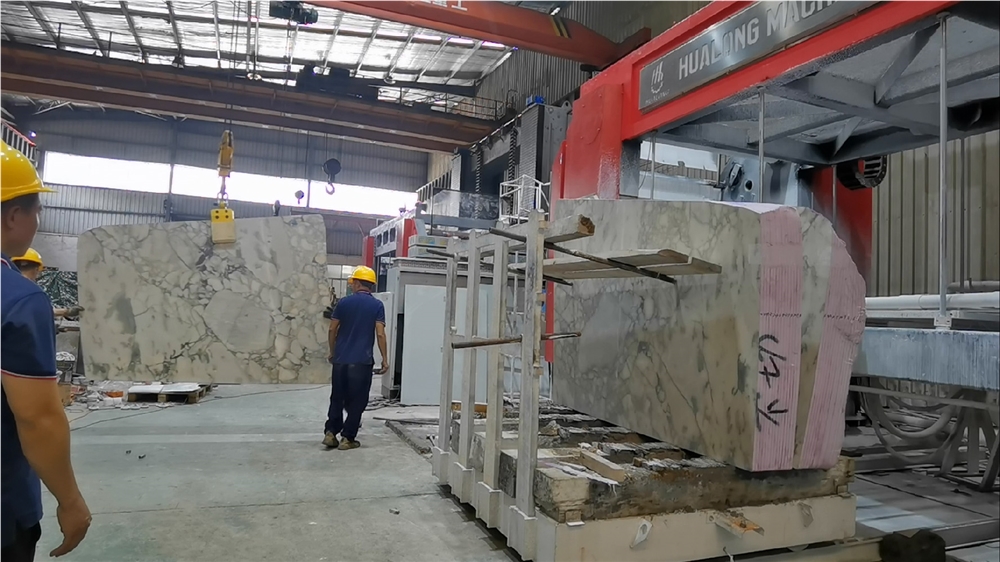

Working Example

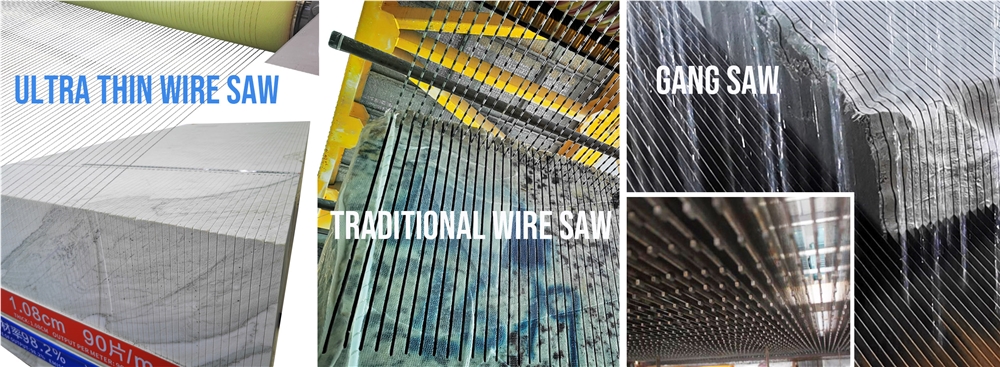

Contrast of 3 Block Cutting Machines

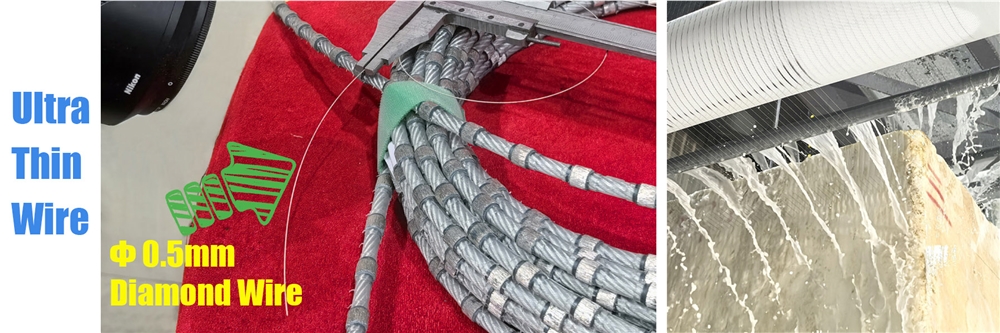

The output of ultra thin multiwire is 15% more than gang saw and 20% more than traditional wire/rope saw. Because diameter difference means yield difference.

HLMW-100/150 -- Diameter of diamond wire saw	0.3-0.8mm
Traditional -- Diameter of diamond wire/rope saw	5.3-7.3mm
Gang saw -- Thickness of belt saw with segments	2.2 - 3.5mm

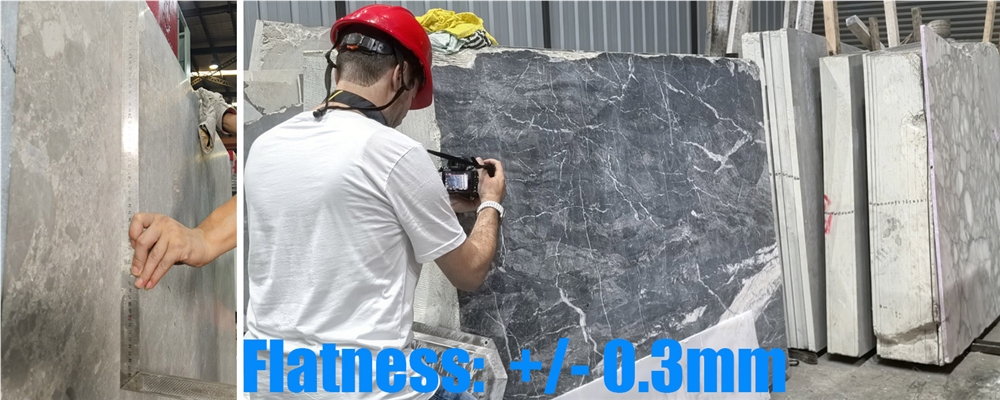

Tense and steady thin wire cutting make surface flatness within +/- 0.3mm

It is never too late to upgrade equipment for more value and less consumption.

Get an extra profit of USD260000, one free HLMW-100/150 machine, within 6 months. Just let HLMW-100/150 create for you !

Technical Data

Parameters	Unit	HLMW-100/150
Max. volume of stored wire	km	40/80
Max. spindle speed	rpm/min	3000
Max. Cutting width	mm	2000
Machine height (H)	mm	7445
Slabs nominal thickness	mm	5-30
Main motor power	kw	60 x 4
Max.tension	N	260
Diamond wires speed	m/s	25-40
Machine width (W)	mm	4800
Machine length (L)	mm	10160
Diamond wire diameter	mm	0.3-0.8
Voltage/Frequency	V/Hz	380/60
Down speed	cm/h	5-1200
Max. Cutting height	mm	2100
Max. Cutting length	mm	3300

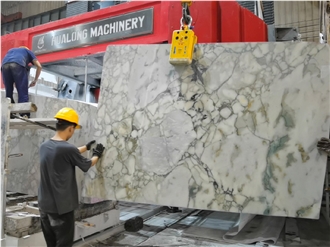

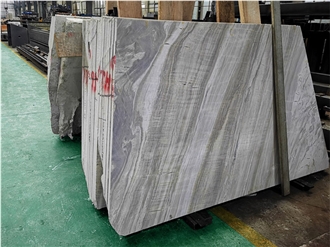

Processed Stone Photos

Quartize cutted
Quartize block cutted

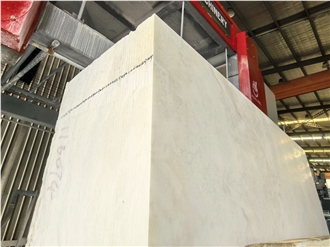

Marble block cutted
Stone blocks cutted
BVLGARI stone cutted

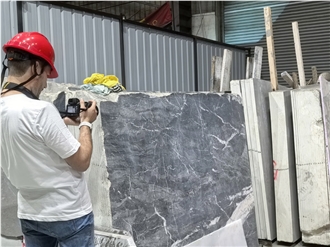

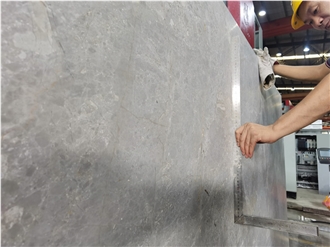

Flat surface

Components

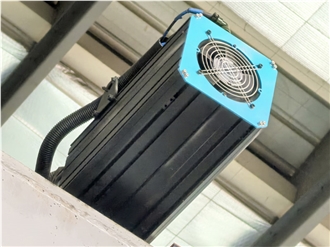

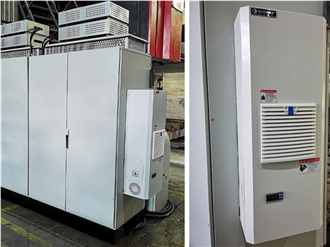

Air conditioner for the electrical cabinet

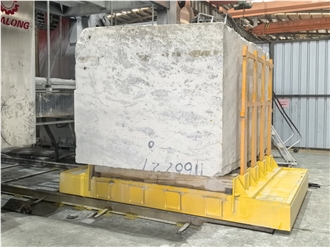

Block trolley
Payment required

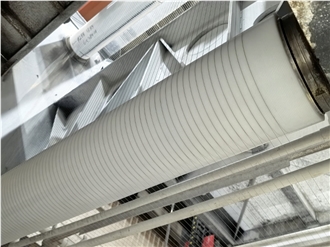

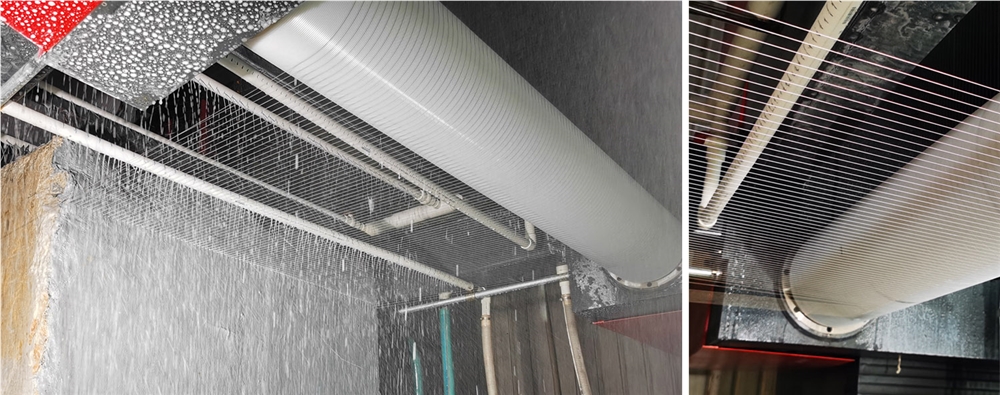

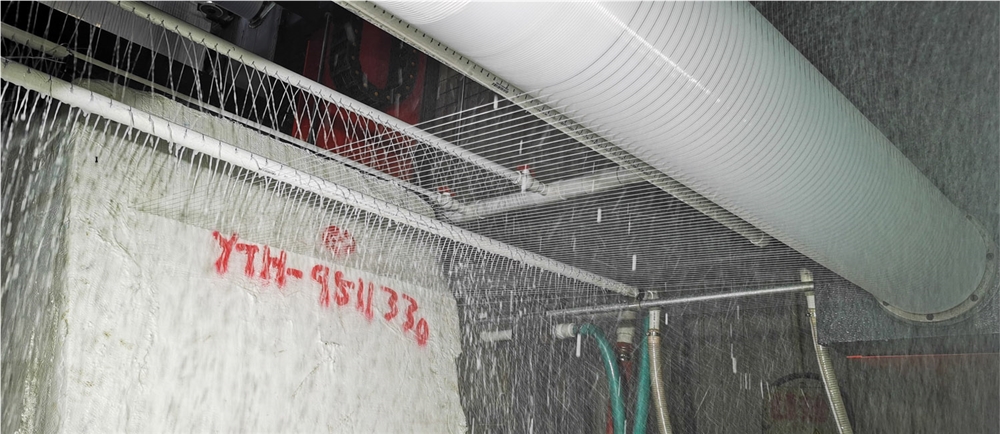

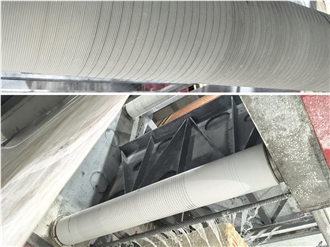

Four PU-coated guiding rollers with wire grooves
Servo motors for high move adjustment accracy

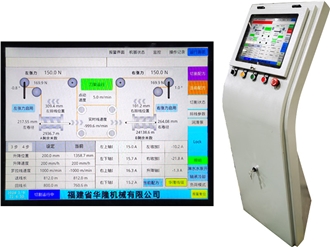

with touch screen

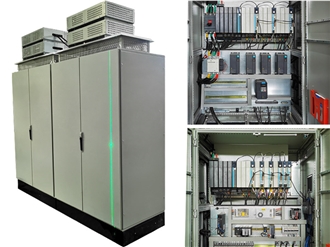

Electrical cabinet

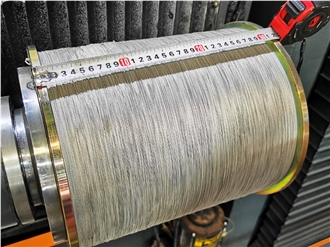

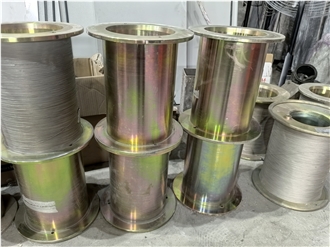

Diamond wire spools

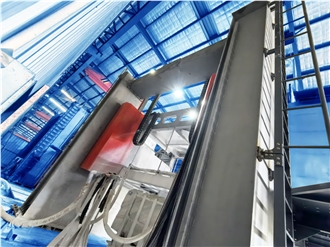

Strong stand structure with two sturdy columns

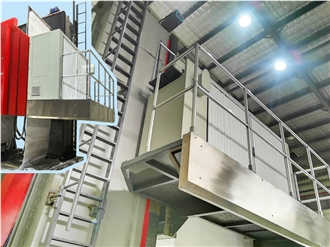

Safe work platform for replacing wires

Consumables

Ultra thin diamond wire

optional

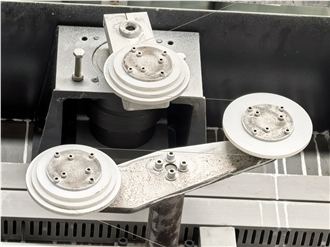

Guiding and tensioning wheels

optional
Pu-coated rollers

optional

After-Sale

Lead Time: 30-45 days
Warranty: 12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance: Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
