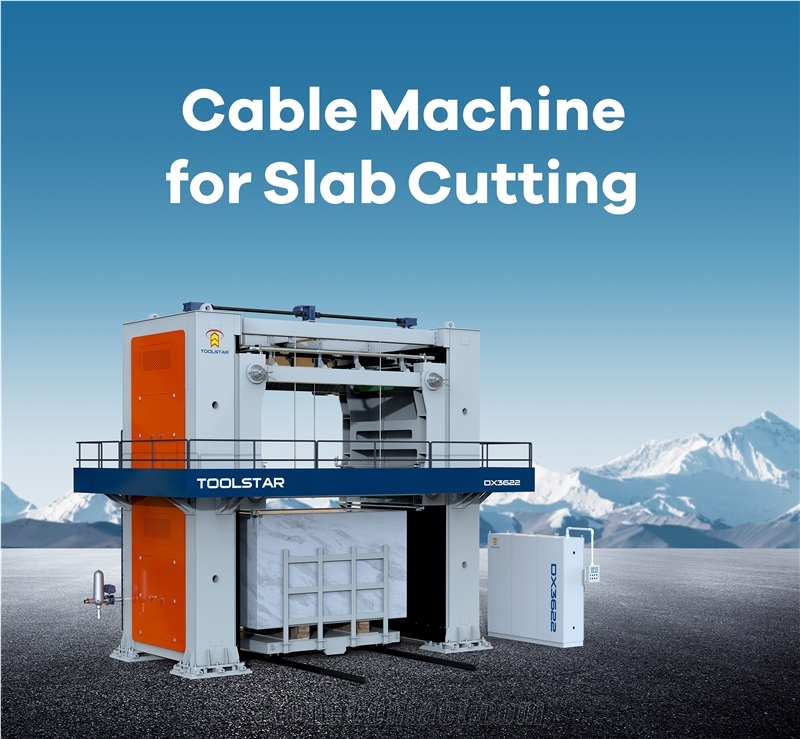

Super Thin Diameter Cable Multi Wire Saw Machine For Marble Slabs Cutting

Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine

$395000-400000

TOOLSTAR China China

Usage: Marble, Limestone, Sandstone, Travertine

Trade Terms:
Port : shenzhen- China
Shipment Terms:FOB CFR CIF EXW FCA
Payment :
Payment Payment Payment Payment Payment Payment Payment
Machinery Function Features

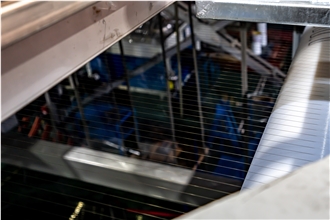

a. Tiny wire saws with only 0.5~0.7mm cutting groove brings yield rate up to 97%.
b. The machine main structure is made by castings to ensure stable operation and zero structural deformation.

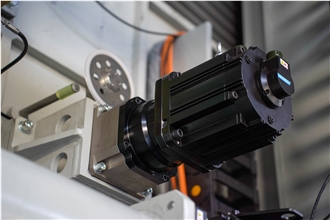

c. The machine equips a set of advanced servo system, securing smooth and reliable performance.
d. The main motor adopts a direct-drive structure, enabling precise and controllable operation during the machine's running process.
e. With less cutting vibration to avoid edge breakage, the machine can produce Ultra-thin slabs below 10mm.
f. Convenient grooving can satisfy various slab thicknesses requirements.
Technical Data
Parameters Unit DX3623
Wire pitch for sawing 30mm thick. mm 0.5mm
Main motor power kw 60KW
Pitch groove wire driving mm 0.5mm
Machine width (W) m 5.4
Production efficiency 20mm thick. m2/h 9.6cm/h
Max. Cutting length m 3.6
Output number of slabs 30mm per linear mt. pcs 60pcs
Diamond wires speed m/s 30m/s
Diamond bead diameter mm 0.5mm
Approximative Weight T 43
Machine length (L) m 8.2
Installed electrical power kw 300KW
Machine height (H) m 6.8
Max. individual diamond wire tension Kg 260N
Diamond wire length m 30000
Output number of slabs 20mm per linear mt. pcs 90pcs
Slabs nominal thickness mm 10mm
Max. Number of wires for sawing 20mm thick. pcs 90
Max. Cutting width m 2.1
Wire pitch for sawing 20mm thick. mm 0.5mm
Max. Number of wires for sawing 30mm thick. pcs 60
Dim. Trolley Size/Worktable size m L3.2*W2.35

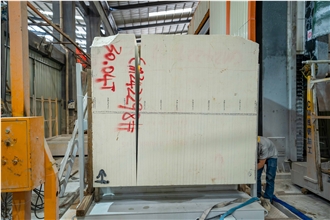

Processed Stone Photos
Components
Consumables
