Name: TSY-MW14/16 Multi Wire Saw Machine For Blocks Cutting
Brand: FUJIAN SKYSTONE TECHNOLOGY CO., LTD.
SKU: 8228
Price: 10000 USD
Availability: InStock

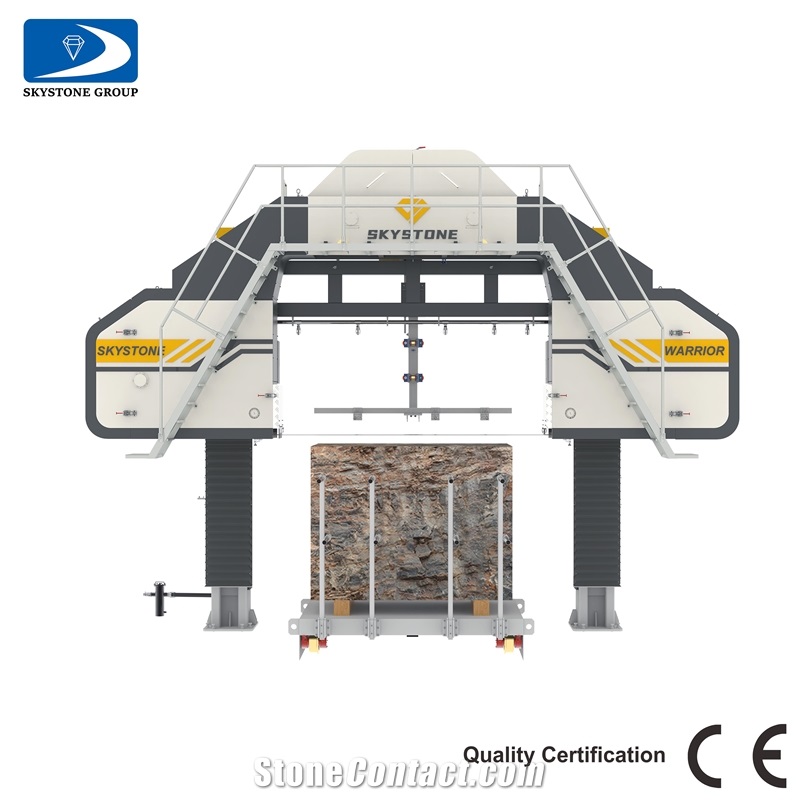

TSY-MW14/16 Multi Wire Saw Machine For Blocks Cutting

Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine

Skystone

China

Usage: Granite, Marble, Limestone, Quartzite, Sandstone

Trade Terms:

Port : Xiamen- China

Shipment Terms:FOB CFR CIF EXW

Payment :

Machinery Function Features

The latest triangle structure technology, higher cutting efficiency, and the stability of running. Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety. Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input. The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance. The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions.

Technical Data

Parameters	Unit	TSY-MW14	TSY-MW16
Machine size	m	8.92.75.7	8.92.75.7
Cooling water(min. required pressure 3.5 bar)	L/min	200	200
Main motor power	kw	75	75
Diamond bead diameter	mm	6.3	5.3
Max. Cutting width	mm	348.9	390.3
Diamond wires speed	m/s	0-40	0-40
Diamond wire length	mm	20	20
Slab thickness	mm	20/30/40/50	20/30/50/70
Max. Cutting height	mm	2200	2200
Machine weight	t	16.5	17
Tension	kg	190-210	160-170
Total power	kw	82.95	82.95
Max. Cutting length	mm	3600	3600

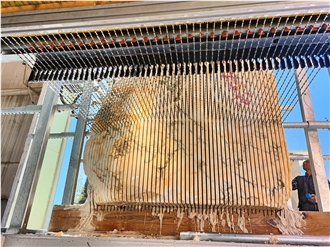

Processed Stone Photos

Components

Consumables

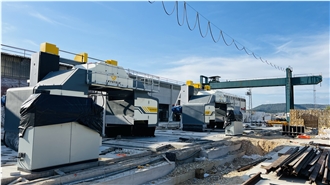

Customer Case

China

After-Sale

Lead Time: 3-4 month
Warranty: 12 Months
Install and Guarantee:Remote guidance installation, Third-party team installation
Maintenance: Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
