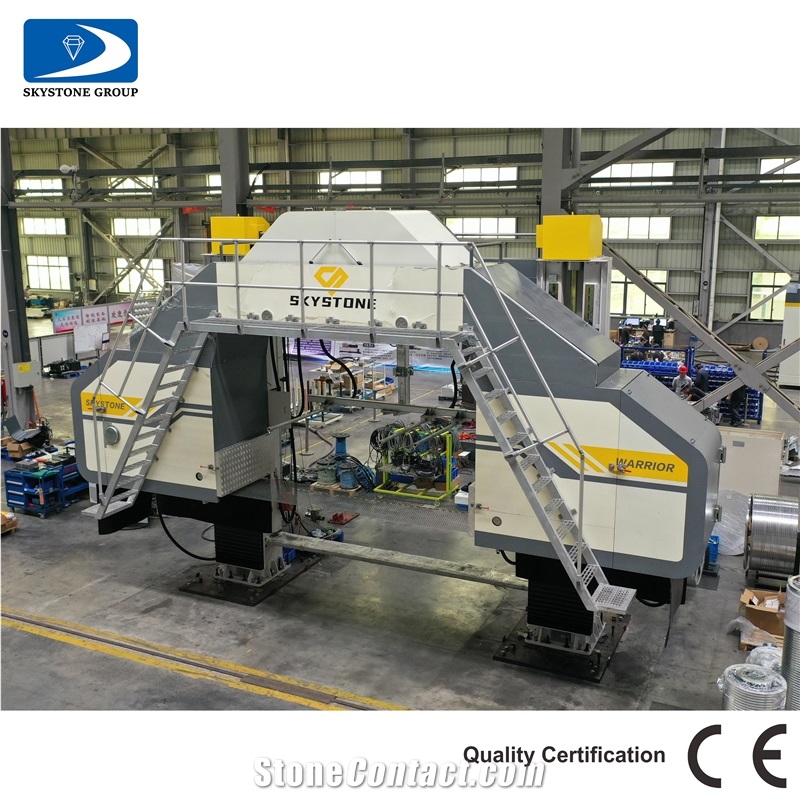

TSY-MW32/34 Multi Wire Saw Machine For Blocks Cutting

Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine

Skystone China China

Usage: Granite, Marble, Limestone, Quartzite, Sandstone

Trade Terms:
Port : Xiamen- China
Shipment Terms:FOB CFR CIF EXW
Payment :
Payment Payment
Machinery Function Features

The latest triangle structure technology, higher cutting efficiency, and the stability of running. Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety. Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input. The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance. The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions.

Technical Data
Parameters Unit TSY-MW32 TSY-MW34
Diamond bead diameter mm 7.3 6.3
Diamond wires speed m/s 0-40 0-40
Max. Cutting height mm 2200 2200
Machine size m 9.2*4*5.8 9.2*4*5.8
Main motor power kw 160 160
Max. Cutting width mm 925.8 948
Tension kg 220-250 190-210
Max. Cutting length mm 3600 3600
Cooling water(min. required pressure 3.5 bar) L/min 500 500
Diamond wire length mm 20 20
Total power kw 169.45 169.45
Machine weight t 28 28.5
